6019 Acrylic Adhesive

6019

Overview

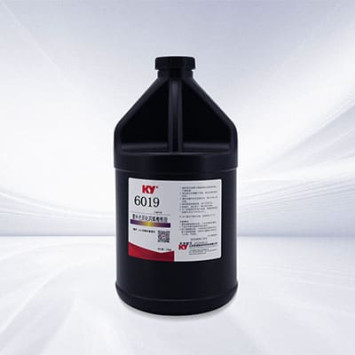

6019 Acrylic Adhesive

is a dual-cure innovation crafted for precision bonding of glass and electronic circuits. Engineered with advanced UV and anaerobic dual-cure technology, this structural adhesive ensures fast and reliable curing—whether exposed to light or sealed in tight, enclosed areas. Its high viscosity and exceptional flow control provide clean, accurate application, making it the perfect solution for glass bonding, metal joint assembly, and electronic component encapsulation. For professionals seeking efficiency, strength, and versatility, 6019 Acrylic Adhesive delivers performance you can count on.

Features

  • Color: Deep blue
  • Viscosity: 15,000 ~ 20,000 MPa·s
  • Density: 1.1 g/cm³
  • Maximum Gap Fill: N/A mm
  • Tensile Shear Strength: ≥4.0 MPa
  • Initial Cure Time at Room Temperature: ≤3 minutes
  • Full Cure Time at Room Temperature: 24 hours
  • Operating Temperature: -50 ~ 120°C

Product Overview

Product Model Color Viscosity (mPa·s) Density (g/cm³) Max Filler Particle Size (mm) Tensile Shear Strength (MPa) Curing Time at Room Temp Initial (min) Curing Time at Room Temp Full (h) Operating Temperature (°C)
3325 Light Yellow 12000-15000 NA NA 16 2 24 -50-200
3326 Light Yellow to Amber 15000-21000 1.1 0.25 ≥15.2 ≤3 24 -50-150
3330 Light Yellow to Amber 45000-90000 1.05 0.5 ≥11 ≤5 24 -50-120
3332 Colorless to light yellow 60000-130000 0.97 0.5 ≥11 ≤5 24 -50-200
3377 Light Amber to Dark Amber 2500-4000 1.05 0.15 ≥15.2 ≤3 24 -50-150
6019 Dark Blue 15000-20000 1.1 NA ≥4.0 ≤3 24 -50-120
6020 Light Amber 18000-24000 1.06 NA ≥4.0 NA NA -50-150
