3377 Acrylic Structural Adhesive

3377

Overview

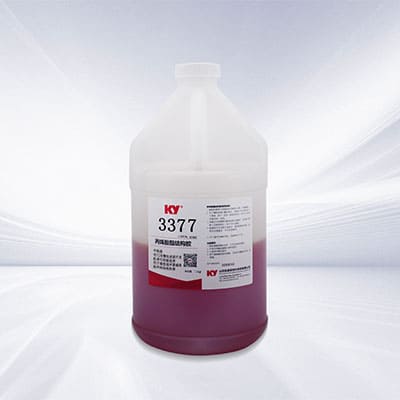

3377 Acrylic Structural Adhesive

delivers unmatched bonding for inert surfaces and excels as a reliable partner for micro-components! Tough-to-bond surfaces? Trust 3377! This medium-viscosity structural adhesive, crafted for inert surfaces such as galvanized and nickel-plated materials, works with an activator to cure quickly at room temperature, no mixing required. Perfect for micro-speakers, magnetic circuit components, and other precision parts, it boasts superior anti-aging properties and exceptional durability.

Features

  • Color: Light amber to deep amber
  • Viscosity: 2,500 ~ 4,000 MPa·s
  • Density: 1.05 g/cm³
  • Maximum Gap Fill: 0.15 mm
  • Tensile Shear Strength: ≥15.2 MPa
  • Initial Cure Time at Room Temperature: ≤3 minutes
  • Full Cure Time at Room Temperature: 24 hours
  • Operating Temperature: -50 ~ 150°C

Product Overview

Product Model Color Viscosity (mPa·s) Density (g/cm³) Max Filler Particle Size (mm) Tensile Shear Strength (MPa) Curing Time at Room Temp Initial (min) Curing Time at Room Temp Full (h) Operating Temperature (°C)
3325 Light Yellow 12000-15000 NA NA 16 2 24 -50-200
3326 Light Yellow to Amber 15000-21000 1.1 0.25 ≥15.2 ≤3 24 -50-150
3330 Light Yellow to Amber 45000-90000 1.05 0.5 ≥11 ≤5 24 -50-120
3332 Colorless to light yellow 60000-130000 0.97 0.5 ≥11 ≤5 24 -50-200
3377 Light Amber to Dark Amber 2500-4000 1.05 0.15 ≥15.2 ≤3 24 -50-150
6019 Dark Blue 15000-20000 1.1 NA ≥4.0 ≤3 24 -50-120
6020 Light Amber 18000-24000 1.06 NA ≥4.0 NA NA -50-150
