3326 Acrylic Structural Adhesive
3326
Overview

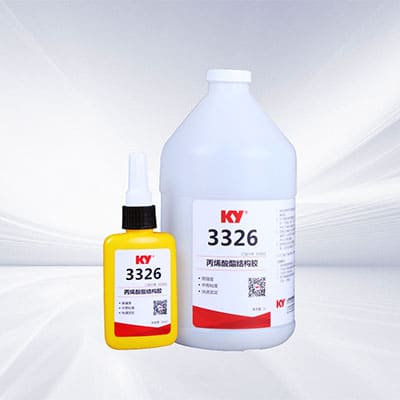

3326 Acrylic Structural Adhesive
is a single-component adhesive designed for ease of use, curing rapidly at room temperature when paired with an activator. It is ideal for bonding rigid materials such as ferrites, metals, and glass, making it particularly suitable for precision assembly in motors and acoustic devices.
It offers high shear strength, excellent impact resistance, and superior peel resistance, ensuring strong and long-lasting bonds.
Features
- Color: Light yellow to amber
- Viscosity: 15,000 ~ 21,000 MPa·s
- Density: 1.1 g/cm³
- Maximum Gap Fill: 0.25 mm
- Tensile Shear Strength: ≥15.2 MPa
- Initial Cure Time at Room Temperature: ≤3 minutes
- Full Cure Time at Room Temperature: 24 hours
- Operating Temperature: -50 ~ 150°C
Product Overview
| Product Model | Color | Viscosity (mPa·s) | Density (g/cm³) | Max Filler Particle Size (mm) | Tensile Shear Strength (MPa) | Curing Time at Room Temp Initial (min) | Curing Time at Room Temp Full (h) | Operating Temperature (°C) |
|---|---|---|---|---|---|---|---|---|
| 3325 | Light Yellow | 12000-15000 | NA | NA | 16 | 2 | 24 | -50-200 |
| 3326 | Light Yellow to Amber | 15000-21000 | 1.1 | 0.25 | ≥15.2 | ≤3 | 24 | -50-150 |
| 3330 | Light Yellow to Amber | 45000-90000 | 1.05 | 0.5 | ≥11 | ≤5 | 24 | -50-120 |
| 3332 | Colorless to light yellow | 60000-130000 | 0.97 | 0.5 | ≥11 | ≤5 | 24 | -50-200 |
| 3377 | Light Amber to Dark Amber | 2500-4000 | 1.05 | 0.15 | ≥15.2 | ≤3 | 24 | -50-150 |
| 6019 | Dark Blue | 15000-20000 | 1.1 | NA | ≥4.0 | ≤3 | 24 | -50-120 |
| 6020 | Light Amber | 18000-24000 | 1.06 | NA | ≥4.0 | NA | NA | -50-150 |
