3330 Acrylic Structural Adhesive
3330
Overview

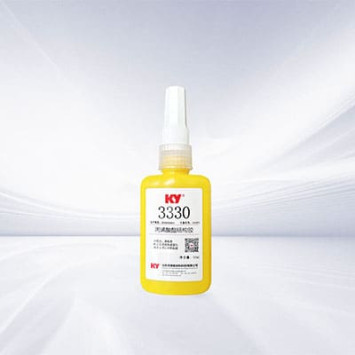

3330 Acrylic Structural Adhesive
bonds multiple materials with ease! Perfect for industrial and everyday use. From metals and wood to plastics, this adhesive creates strong, secure bonds. A high-viscosity, single-component structural adhesive, it cures rapidly when used with an activator and suits a variety of materials, such as tool handles, sports equipment, and decorative items. Offering superior strength, flexibility, and durability, it’s the ideal all-purpose solution for multi-material assembly."
Features
- Color: Light yellow translucent paste
- Viscosity: 45,000 ~ 90,000 MPa·s
- Density: 1.05 g/cm³
- Maximum Gap Fill: 0.5 mm
- Tensile Shear Strength: ≥11 MPa
- Initial Cure Time at Room Temperature: ≤5 minutes
- Full Cure Time at Room Temperature: 24 hours
- Operating Temperature: -50 ~ 120°C
Product Overview
| Product Model | Color | Viscosity (mPa·s) | Density (g/cm³) | Max Filler Particle Size (mm) | Tensile Shear Strength (MPa) | Curing Time at Room Temp Initial (min) | Curing Time at Room Temp Full (h) | Operating Temperature (°C) |
|---|---|---|---|---|---|---|---|---|
| 3325 | Light Yellow | 12000-15000 | NA | NA | 16 | 2 | 24 | -50-200 |
| 3326 | Light Yellow to Amber | 15000-21000 | 1.1 | 0.25 | ≥15.2 | ≤3 | 24 | -50-150 |
| 3330 | Light Yellow to Amber | 45000-90000 | 1.05 | 0.5 | ≥11 | ≤5 | 24 | -50-120 |
| 3332 | Colorless to light yellow | 60000-130000 | 0.97 | 0.5 | ≥11 | ≤5 | 24 | -50-200 |
| 3377 | Light Amber to Dark Amber | 2500-4000 | 1.05 | 0.15 | ≥15.2 | ≤3 | 24 | -50-150 |
| 6019 | Dark Blue | 15000-20000 | 1.1 | NA | ≥4.0 | ≤3 | 24 | -50-120 |
| 6020 | Light Amber | 18000-24000 | 1.06 | NA | ≥4.0 | NA | NA | -50-150 |
