3325 Acrylic Structural Adhesive
3325
Overview

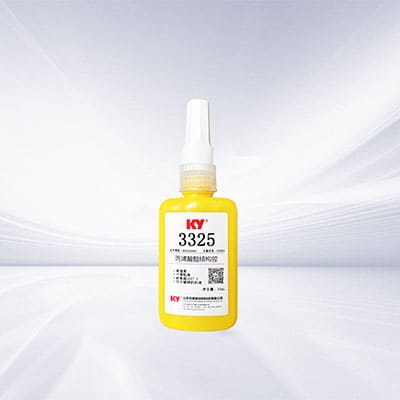

3325 Acrylic Structural Adhesive
is widely used for bonding metals, ferrites, speaker components, and jewelry. It delivers stable and durable bonding performance, curing quickly at room temperature. With its high viscosity, excellent high-temperature resistance, and superior impact resistance, it ensures reliable adhesion across various demanding applications.
Features
- Color: Light yellow
- Viscosity: 12,000 ~ 15,000 MPa·s
- Tensile Shear Strength: 16 MPa
- Initial Cure Time at Room Temperature: 2 minutes
- Full Cure Time at Room Temperature: 24 hours
- Operating Temperature: -50 ~ 200°C
Product Overview
| Product Model | Color | Viscosity (mPa·s) | Density (g/cm³) | Max Filler Particle Size (mm) | Tensile Shear Strength (MPa) | Curing Time at Room Temp Initial (min) | Curing Time at Room Temp Full (h) | Operating Temperature (°C) |
|---|---|---|---|---|---|---|---|---|
| 3325 | Light Yellow | 12000-15000 | NA | NA | 16 | 2 | 24 | -50-200 |
| 3326 | Light Yellow to Amber | 15000-21000 | 1.1 | 0.25 | ≥15.2 | ≤3 | 24 | -50-150 |
| 3330 | Light Yellow to Amber | 45000-90000 | 1.05 | 0.5 | ≥11 | ≤5 | 24 | -50-120 |
| 3332 | Colorless to light yellow | 60000-130000 | 0.97 | 0.5 | ≥11 | ≤5 | 24 | -50-200 |
| 3377 | Light Amber to Dark Amber | 2500-4000 | 1.05 | 0.15 | ≥15.2 | ≤3 | 24 | -50-150 |
| 6019 | Dark Blue | 15000-20000 | 1.1 | NA | ≥4.0 | ≤3 | 24 | -50-120 |
| 6020 | Light Amber | 18000-24000 | 1.06 | NA | ≥4.0 | NA | NA | -50-150 |
