6059 UV-Curable Adhesive

6059

Overview

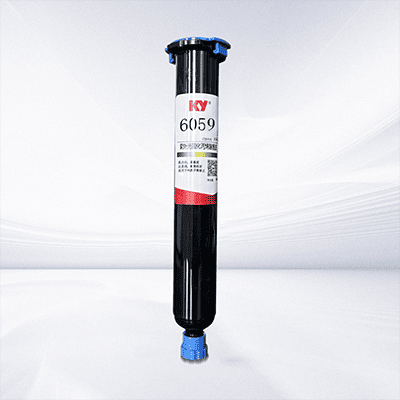

6059 UV-Curable Adhesive

  is a one-component, medium-viscosity UV-curable acrylate adhesive featuring low dielectric constant, high volume resistivity, and excellent resistance to both high and low temperatures. It cures rapidly under UV exposure, providing reliable protection for electronic solder joints and precision components. It is especially suitable for electronic and communication devices requiring low-dielectric performance.

Features

  • Color: Light yellow liquid
  • Chemical base: Acrylate
  • Viscosity (25 °C, 10 rpm): 5,000–12,000 mPa·s
  • Density: 1.05 ± 0.05 g/cm³

OSFP High-Speed Module Solder Joint Protection and Application Testing

As a leading manufacturer in the OSFP (Octal Small Form-factor Pluggable) sector, application testing of 6059 was conducted on OSFP products in 2025. Results confirm stable performance under high-speed data transmission, effectively ensuring solder-joint reliability and signal integrity. It is well-suited for solder joint protection and localized reinforcement in OSFP high-speed modules.

Detailed test reports and more application information can be found in our article: Key to High-Speed Data Center Transmission │ UV Solder Joint Protection + PA Low-Pressure Forming.

Product Features

  • One-component formulation for easy handling

  • Fast UV curing to improve production efficiency

  • Low dielectric constant and dielectric loss

  • High volume resistivity for excellent electrical insulation

  • Reliable performance at high and low temperatures

  • Ideal for precision electronics and solder joint protection

Application Scope

  • Electronic solder joint protection

  • Low-dielectric UV-curable adhesive applications

  • Fixation of communication equipment and electronic modules

  • Protection and encapsulation of precision electronic components

Product Overview

Product Model Colour Viscosity MPa.s Curing Depth mm Hardness Shore Shear Strength (PC/PC) MPa
Q3311 Transparent 200~400 ≥4 64D ≥18
UV3385 Light Amber Transparent Liquid 18000~24000 ≥2 60D ≥4
6011 Transparent 4000~5000 ≥4 53D ≥18
6012 White 25000~35000 ≥4 65±7D ≥18
6022 Light Blue 25000~35000 ≥2 50±70D ≥18
6023 Light Yellow 8000~9300 ≥4 60±70D ≥15
6024 White 15000~25000 ≥1 55±5D ≥12
6035 Blue 17500~22000 ≥2 60D ≥18
6037 White 11000~18000 ≥0.5 55±5D ≥12
6040 Red 25000~35000 ≥4   ≥18
6048 Light Yellow 10000~20000 >3.5 30D >12
6050 Milky White 20000~30000 2.0~2.6 70~80D >5
6070 Black 4000   58D 18
6075 Transparent 253 >3.5 88D
6085HV Red 25000~35000 ≥0.8 70±5D ≥17
6086 White 20000~30000 ≥1 80±5D ≥12
6233 Light Yellow Transparent 3500~6500 ≥1 70±5D ≥15
6311 Colourless Transparent 4400   55
6341 Transparent to Hazy 80~220 ≥1.8 55 (Shore 00)
6342 Transparent to Hazy Amber 900~1600 ≥1.5 67D ≥10
6345 Light Yellow Transparent 1000~2000 ≥2.5 76D
6412 White 25000~35000 ≥1 70D ≥17
6433 Black 8000~12000 ≥0.5 70±5D ≥15
6612 White 20000~35000 ≥1 25~40D ≥12
