UV3385 UV-Curable Adhesive

UV3385

Overview

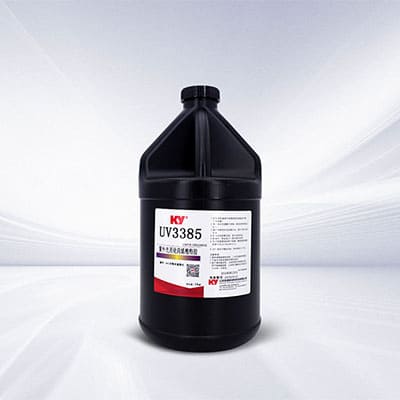

UV3385 UV-Curable Adhesive

 is the ideal bonding solution for glass furniture manufacturing and the electronics industry! This high-viscosity adhesive employs UV/anaerobic dual-cure technology, offering excellent adhesion to glass, various metals, and other substrates. The cured adhesive layer is flexible, with outstanding vibration and impact resistance, making it suitable for glass furniture, electronic scale bonding, and solder joint protection, meeting the diverse needs of Taiwan's industrial and DIY users.

Features

  • Color: Light amber transparent liquid
  • Viscosity: 18,000 ~ 24,000 MPa·s
  • Cure Depth: ≥2 mm
  • Hardness: 60D Shore
  • Shear Strength (PC/PC): ≥4 Mpa

Product Overview

Product Model Colour Viscosity MPa.s Curing Depth mm Hardness Shore Shear Strength (PC/PC) MPa
Q3311 Transparent 200~400 ≥4 64D ≥18
UV3385 Light Amber Transparent Liquid 18000~24000 ≥2 60D ≥4
6011 Transparent 4000~5000 ≥4 53D ≥18
6012 White 25000~35000 ≥4 65±7D ≥18
6022 Light Blue 25000~35000 ≥2 50±70D ≥18
6023 Light Yellow 8000~9300 ≥4 60±70D ≥15
6024 White 15000~25000 ≥1 55±5D ≥12
6035 Blue 17500~22000 ≥2 60D ≥18
6037 White 11000~18000 ≥0.5 55±5D ≥12
6040 Red 25000~35000 ≥4   ≥18
6048 Light Yellow 10000~20000 >3.5 30D >12
6050 Milky White 20000~30000 2.0~2.6 70~80D >5
6070 Black 4000   58D 18
6075 Transparent 253 >3.5 88D
6085HV Red 25000~35000 ≥0.8 70±5D ≥17
6086 White 20000~30000 ≥1 80±5D ≥12
6233 Light Yellow Transparent 3500~6500 ≥1 70±5D ≥15
6311 Colourless Transparent 4400   55
6341 Transparent to Hazy 80~220 ≥1.8 55 (Shore 00)
6342 Transparent to Hazy Amber 900~1600 ≥1.5 67D ≥10
6345 Light Yellow Transparent 1000~2000 ≥2.5 76D
6412 White 25000~35000 ≥1 70D ≥17
6433 Black 8000~12000 ≥0.5 70±5D ≥15
6612 White 20000~35000 ≥1 25~40D ≥12
