5133 Silicone Adhesive

5113

Overview

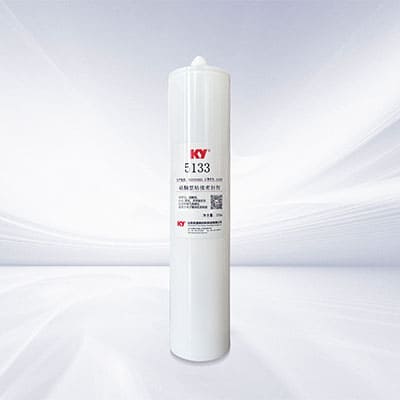

5133 Silicone Adhesive

and Sealant is a top-tier solution for electronics manufacturing. This single-component, alcohol-cure, thixotropic RTV (Room Temperature Vulcanizing) silicone sealant, available in white or black, bonds seamlessly to a wide range of substrates while offering excellent electrical insulation. ROHS-compliant and eco-friendly, it’s tailored for electronic module assembly and component bonding, delivering reliable adhesion and sealing performance to meet the high-efficiency and environmental demands of electronics manufacturers.

Features

Color: White or Black
Density: 1.4 g/cm³
Tack-Free Time: 15 minutes
Hardness: 40 Shore A
Tensile Strength: 2.2 MPa
Elongation at Break: 380%
Operating Temperature: -50 ~ 150°C

Model	Color	Viscosity MPa·s	Density g/cm³	Surface Dry Time min	Hardness Shore A	Tensile Strength MPa	Elongation at Break %	Operating Temp ℃
2505	Translucent		1.0±0.1	≤15	10~20A	≥0.8	≥260	-50~200
2506	Black		1.38		60~75A	＞2.0	＞100
2508	Black	15000~25000	1.05	4~15	20~50A	≥1.0	≥200	-60~200
5101	Translucent	1000	1.0	5	28~38A	1.5~2.5	100~200	-60~260
5112	White		1.47	2~35	40~60A	＞2.0	＞200
5114	Clear / Gray		1.0~1.2	15~35	40~50A	1.47~2.94	500~650	-50~200
5115	Light Gray	44000	1.0~1.2		30~45A	1.47~2.45	250~350	-50~250
5116	Translucent / White / Black		1.08	15	45A	5	350	-50~150
5118	White / Black	40	1.3	15	35A	1.5	160	-50~150
5119	Milky White / Black	12-38	1.0	3~30	25A	0.8	140	-55~250
5133	White / Black		1.4	15	40A	2.2	380	-50~150
