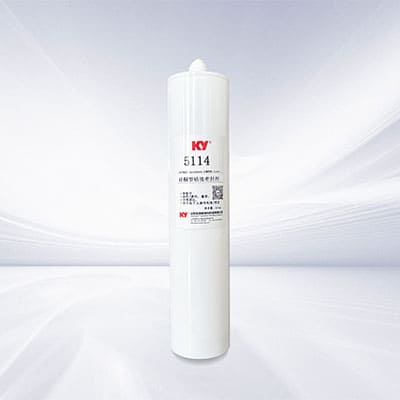

5114 Silicone Adhesive

5114

Overview

5114 Silicone Adhesive

is a neutral-cure, single-component RTV (Room Temperature Vulcanizing) silicone rubber available in translucent or gray. Renowned for its exceptional bonding, fixing, and sealing capabilities, it retains outstanding elasticity and superior electrical insulation after curing. Widely used in electronic components, instrumentation, automotive parts, and the LED industry, it provides reliable, long-lasting solutions for three-proofing (waterproof, dustproof, and shockproof) and sealing needs, meeting industrial demands for efficiency and high reliability.

Features

Color: Translucent or Gray
Density: 1.0 ~ 1.2 g/cm³
Tack-Free Time: 15 ~ 35 minutes
Hardness: 40 ~ 50 Shore A
Tensile Strength: 1.47 ~ 2.94 MPa
Elongation at Break: 500 ~ 650%
Operating Temperature: -50 ~ 200°C

Model	Color	Viscosity MPa·s	Density g/cm³	Surface Dry Time min	Hardness Shore A	Tensile Strength MPa	Elongation at Break %	Operating Temp ℃
2505	Translucent		1.0±0.1	≤15	10~20A	≥0.8	≥260	-50~200
2506	Black		1.38		60~75A	＞2.0	＞100
2508	Black	15000~25000	1.05	4~15	20~50A	≥1.0	≥200	-60~200
5101	Translucent	1000	1.0	5	28~38A	1.5~2.5	100~200	-60~260
5112	White		1.47	2~35	40~60A	＞2.0	＞200
5114	Clear / Gray		1.0~1.2	15~35	40~50A	1.47~2.94	500~650	-50~200
5115	Light Gray	44000	1.0~1.2		30~45A	1.47~2.45	250~350	-50~250
5116	Translucent / White / Black		1.08	15	45A	5	350	-50~150
5118	White / Black	40	1.3	15	35A	1.5	160	-50~150
5119	Milky White / Black	12-38	1.0	3~30	25A	0.8	140	-55~250
5133	White / Black		1.4	15	40A	2.2	380	-50~150
