5116 Silicone Adhesive

5116

Overview

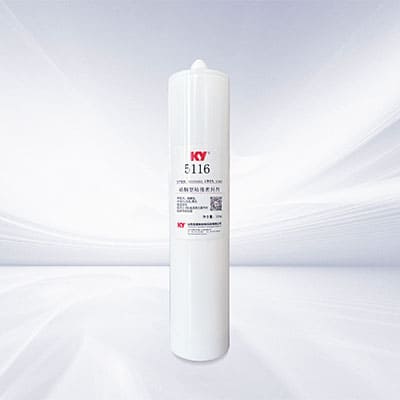

5116 Silicone Adhesive

is a leading solution for electronics manufacturing. This single-component, alcohol-cure, room-temperature-vulcanizing (RTV) organic silicone sealant, available in translucent, white, or black, delivers robust mechanical strength and exceptional electrical insulation. Engineered for targeted bonding and sealing of PCB components and other high-strength sealing applications, it ensures outstanding sealing performance and long-lasting durability. The 5116 meets the rigorous demands of electronics manufacturers for efficiency, reliability, and precision in protecting critical components.

Features

Color: Translucent, White, or Black
Density: 1.08 g/cm³
Tack-Free Time: 15 minutes
Hardness: 45 Shore A
Tensile Strength: 5 MPa
Elongation at Break: 350%
Operating Temperature: -50 ~ 150°C

Model	Color	Viscosity MPa·s	Density g/cm³	Surface Dry Time min	Hardness Shore A	Tensile Strength MPa	Elongation at Break %	Operating Temp ℃
2505	Translucent		1.0±0.1	≤15	10~20A	≥0.8	≥260	-50~200
2506	Black		1.38		60~75A	＞2.0	＞100
2508	Black	15000~25000	1.05	4~15	20~50A	≥1.0	≥200	-60~200
5101	Translucent	1000	1.0	5	28~38A	1.5~2.5	100~200	-60~260
5112	White		1.47	2~35	40~60A	＞2.0	＞200
5114	Clear / Gray		1.0~1.2	15~35	40~50A	1.47~2.94	500~650	-50~200
5115	Light Gray	44000	1.0~1.2		30~45A	1.47~2.45	250~350	-50~250
5116	Translucent / White / Black		1.08	15	45A	5	350	-50~150
5118	White / Black	40	1.3	15	35A	1.5	160	-50~150
5119	Milky White / Black	12-38	1.0	3~30	25A	0.8	140	-55~250
5133	White / Black		1.4	15	40A	2.2	380	-50~150
