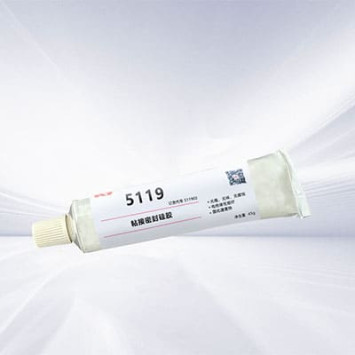

5119 Silicone Adhesive

5119

Overview

5119 Silicone Adhesive

is the go-to choice for electric heater and instrumentation manufacturing. This non-toxic, odorless, non-corrosive, and eco-friendly silicone, available in white or black, cures quickly and boasts exceptional electrical insulation and a long service life, making it ideal for high-speed assembly lines. Designed for insulation, sealing, moisture protection, and shock resistance in electric heaters, instruments, analytical electrodes, and heating plugs, it delivers outstanding sealing performance, meeting industrial demands for efficiency and safety.

Features

Color: White or Black
Viscosity: 12 ~ 38 Pa·s
Density: 1.0 g/cm³
Tack-Free Time: 3 ~ 30 minutes
Hardness: 25 Shore A
Tensile Strength: 0.8 MPa
Elongation at Break: 140%
Operating Temperature: -55 ~ 250°C

Model	Color	Viscosity MPa·s	Density g/cm³	Surface Dry Time min	Hardness Shore A	Tensile Strength MPa	Elongation at Break %	Operating Temp ℃
2505	Translucent		1.0±0.1	≤15	10~20A	≥0.8	≥260	-50~200
2506	Black		1.38		60~75A	＞2.0	＞100
2508	Black	15000~25000	1.05	4~15	20~50A	≥1.0	≥200	-60~200
5101	Translucent	1000	1.0	5	28~38A	1.5~2.5	100~200	-60~260
5112	White		1.47	2~35	40~60A	＞2.0	＞200
5114	Clear / Gray		1.0~1.2	15~35	40~50A	1.47~2.94	500~650	-50~200
5115	Light Gray	44000	1.0~1.2		30~45A	1.47~2.45	250~350	-50~250
5116	Translucent / White / Black		1.08	15	45A	5	350	-50~150
5118	White / Black	40	1.3	15	35A	1.5	160	-50~150
5119	Milky White / Black	12-38	1.0	3~30	25A	0.8	140	-55~250
5133	White / Black		1.4	15	40A	2.2	380	-50~150
