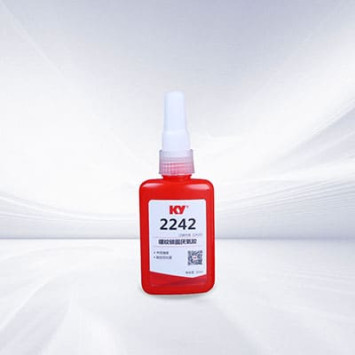

2242 Thread Locking Anaerobic Adhesive
2242
Overview
2242 Thread Locking Anaerobic Adhesive
is a medium-low strength, thixotropic blue adhesive designed for locking and sealing M6 to M20 threaded fasteners. Utilizing anaerobic curing technology, it offers easy disassembly and resistance to various media, providing reliable locking performance. Ideal for mechanical manufacturing, automotive industry, and electronics assembly, it meets the demands for efficiency and ease of maintenance.
Features
- Breakaway Torque: ≥2.3 N·m
- Average Removal Torque: ≥1.1 N·m
- Room-Temperature Cure Time: 24 hours
- Operating Temperature: -50 ~ 150°C
| Product Model | Color | Viscosity MPa·s |
Density g/cm³ |
Breakaway Torque N·m |
Average Removal Torque N·m |
Prevail Torque N·m |
Compressive Strength MPa |
Full Cure Time (Room Temp) h |
Operating Temperature °C |
|---|---|---|---|---|---|---|---|---|---|
| 2204 | Pink | 85000 | 1.05~1.10 | 10~20 | NA | NA | NA | 72 | -54~149 |
| 2242 | Blue | 800~1600 | 1.05 | ≥2.3 | ≥1.1 | NA | NA | 24 | -50~150 |
| 2243 | Blue | 1400~1800 | 1.08 | 25 | 4.5 | 23.5 | ≥7 | 24 | -55~180 |
| 2262 | Red | 1200~2400 | 1.1 | 21 | 31 | 37 | ≥10 | 24 | -50~150 |
| 2263 | Red | 400~600 | 1.1 | 33 | 32 | 38 | ≥15 | 24 | -55~180 |
| 2272 | Orange-red | 5000~11000 | 1.11 | 23 | 25 | NA | ≥14.5 | 24 | -55~230 |
