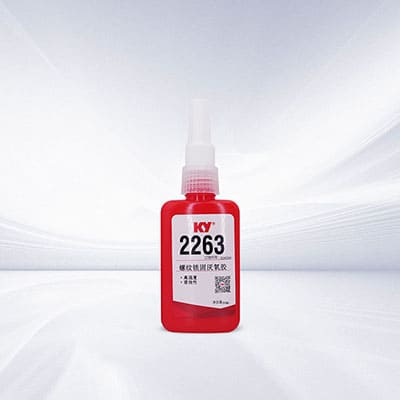

2263 Thread Locking Anaerobic Adhesive
2263
Overview
2263 Thread Locking Anaerobic Adhesive
is an ultra-high strength, low-viscosity red adhesive designed for permanent locking and sealing of threaded fasteners up to M20. It features excellent oil tolerance, allowing application on lightly oiled surfaces, and provides outstanding resistance to various media. Utilizing anaerobic curing technology, it delivers unmatched locking performance, meeting the highest demands for stability and durability in machinery manufacturing, automotive, and heavy equipment applications.
Features
- Color: Red
- Vcosity: 400 ~ 600 MPa·s
- Density: 1.1 g/cm³
- Breakaway Torque: 33 N·m
- Average Removal Torque: 32 N·m
- Prevailing Torque: 38 N·m
- Shear Strength: ≥15 MPa
- Room-Temperature Cure Time: 24 hours
- Operating Temperature: -55 ~ 180°C
| Product Model | Color | Viscosity MPa·s |
Density g/cm³ |
Breakaway Torque N·m |
Average Removal Torque N·m |
Prevail Torque N·m |
Compressive Strength MPa |
Full Cure Time (Room Temp) h |
Operating Temperature °C |
|---|---|---|---|---|---|---|---|---|---|
| 2204 | Pink | 85000 | 1.05~1.10 | 10~20 | NA | NA | NA | 72 | -54~149 |
| 2242 | Blue | 800~1600 | 1.05 | ≥2.3 | ≥1.1 | NA | NA | 24 | -50~150 |
| 2243 | Blue | 1400~1800 | 1.08 | 25 | 4.5 | 23.5 | ≥7 | 24 | -55~180 |
| 2262 | Red | 1200~2400 | 1.1 | 21 | 31 | 37 | ≥10 | 24 | -50~150 |
| 2263 | Red | 400~600 | 1.1 | 33 | 32 | 38 | ≥15 | 24 | -55~180 |
| 2272 | Orange-red | 5000~11000 | 1.11 | 23 | 25 | NA | ≥14.5 | 24 | -55~230 |
