2272 Thread Locking Anaerobic Adhesive
2272
Overview

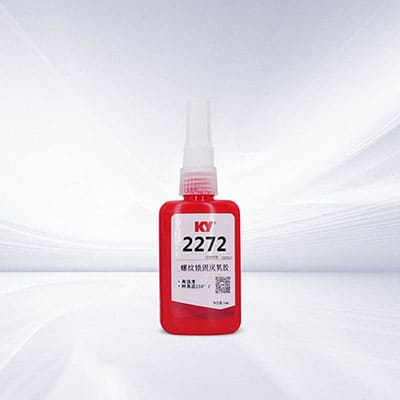

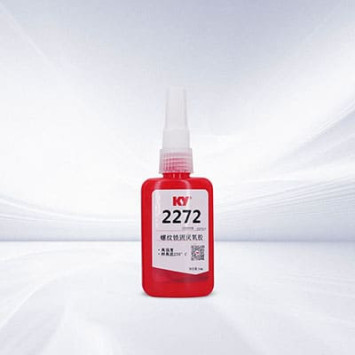

2272 Thread Locking Anaerobic Adhesive
is a high-strength, thixotropic orange-red adhesive designed for locking and sealing threaded fasteners up to M36 in size. With high-temperature resistance up to 230°C and excellent media resistance, it employs anaerobic curing technology to deliver robust locking performance. Ideal for mechanical manufacturing, automotive, and heavy equipment assembly, it meets stringent stability and durability requirements.
Features
- Color: Orange-red
- Viscosity: 5,000 ~ 11,000 MPa·s
- Density: 1.11 g/cm³
- Breakaway Torque: 23 N·m
- Average Removal Torque: 25 N·m
- Shear Strength: ≥14.5 MPa
- Room-Temperature Cure Time: 24 hours
- Operating Temperature: -55 ~ 230°C
| Product Model | Color | Viscosity MPa·s |
Density g/cm³ |
Breakaway Torque N·m |
Average Removal Torque N·m |
Prevail Torque N·m |
Compressive Strength MPa |
Full Cure Time (Room Temp) h |
Operating Temperature °C |
|---|---|---|---|---|---|---|---|---|---|
| 2204 | Pink | 85000 | 1.05~1.10 | 10~20 | NA | NA | NA | 72 | -54~149 |
| 2242 | Blue | 800~1600 | 1.05 | ≥2.3 | ≥1.1 | NA | NA | 24 | -50~150 |
| 2243 | Blue | 1400~1800 | 1.08 | 25 | 4.5 | 23.5 | ≥7 | 24 | -55~180 |
| 2262 | Red | 1200~2400 | 1.1 | 21 | 31 | 37 | ≥10 | 24 | -50~150 |
| 2263 | Red | 400~600 | 1.1 | 33 | 32 | 38 | ≥15 | 24 | -55~180 |
| 2272 | Orange-red | 5000~11000 | 1.11 | 23 | 25 | NA | ≥14.5 | 24 | -55~230 |
