Conductive Non-Woven Double-Sided Tape
GCWD
Overview
Conductive Non-Woven Double-Sided Tape
features low surface resistance, high EMI shielding efficiency, and dependable grounding and ESD discharge performance, making it an excellent solution for both high- and low-frequency EMI suppression.

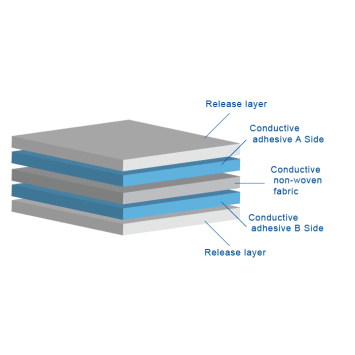

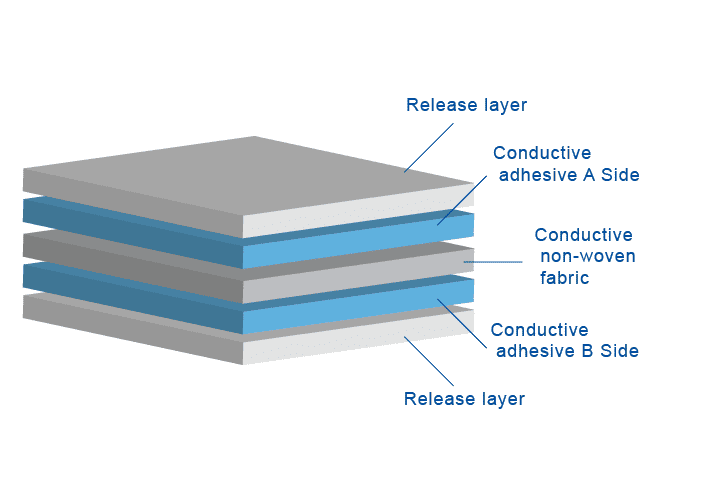

Engineered with a conductive non-woven substrate and double-sided conductive adhesive, this tape offers exceptional flexibility, strong adhesion, and is suitable for die-cutting as well as bonding to irregular surfaces.
Ideal for use in smartphones, tablets, wearable devices, automotive electronics, FPC/PCB, CCD modules, and speakers for reliable EMI shielding and grounding applications.
Features
- Thickness: 0.06 ± 0.01 mm
- Surface Resistance: ≦0.1 Ω/inch²
- Z-Axis Resistance: ≦0.03 Ω/inch²
- Shielding Effectiveness: >60 dB (30 MHz–6 GHz)
- Peel Adhesion (A Side / B Side): A Side ≧700 gf/25mm; B Side ≧1400 gf/25mm
