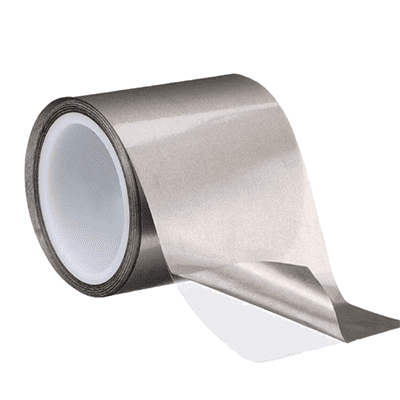

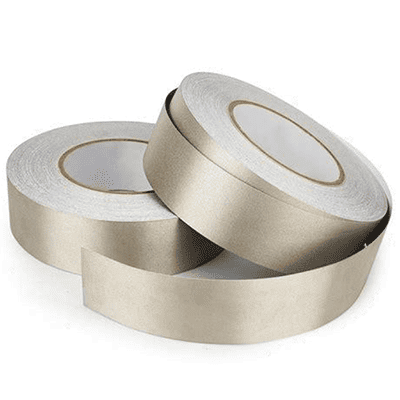

Conductive Fabric Tape (Single-Sided Adhesive)
GCFS
Overview
Conductive fabric tape
is a high-performance EMI/RFI shielding material designed to address both high- and low-frequency interference. It offers low surface resistance, stable grounding, and ESD discharge capability, enhancing overall EMC for electronic assemblies. The fabric surface provides abrasion resistance and excellent convertibility, enabling tight lamination to housings and metal parts to improve product stability.
Key Features
-
Low resistance path for reliable conductivity and fast ESD bleed-off
-
High EMI/RFI shielding effectiveness to isolate internal/external noise
-
Converter-friendly: ideal for die-cutting, lamination, bending/folding
-
Abrasion-resistant, high adhesion; bonds well to diverse substrates
Typical Applications
Smartphones, tablets, FPC flex circuits, rigid PCBs, automotive electronics, shielding cans/covers, and other assemblies requiring EMI/ESD control.
Features
- Surface Resistance: ≦0.05 Ω/inch²
- Shielding Effectiveness: 60–70 dB
- Peel Adhesion: 700–1400 gf/25mm
- Total Thickness: 0.02–0.20 mm
- Operating Temperature: -20 to 85 °C
