Waterproof Cable Gland – Female Thread Type IP68
GNNCGD
Product Overview
Waterproof Cable Gland – Female Thread Type IP68
A female-thread cable gland engineered for equipment with male-threaded ports — thread directly onto the existing interface with no adapter, no extra components. The GNNCGD simplifies mechanical integration while delivering stable cable retention and IP68 waterproofing.
Made from halogen-free UL-certified PA66 nylon (UL94V-2) with an EPDM elastomeric seal, it is rated for static use from -40°C to 100°C and handles UV, weather, and mild chemical exposure. Customizable EPDM formulas are available for low-temperature, high-temperature, chemical-resistance, and marine applications.
Key Features
- Direct female-to-male thread connection: Threads straight onto equipment ports — eliminates adapters and simplifies assembly
- Halogen-free UL94V-2 + IP68: Meets North American and EU safety and environmental standards
- Customizable EPDM seal: Cold-resistant, high-temp, acid/alkali-resistant, and anti-corrosion formulas available on request
| Specification | Details |
|---|---|
| Body Material (C/F parts) | Halogen-free PA66 Nylon (UL94V-2); V-0 upgrade available |
| Seal Material (D part) | EPDM; customizable: cold-resistant / high-temp / acid-alkali / chemical / anti-corrosion |
| Protection Rating | IP68 |
| Flame Rating | UL94V-2 (standard) / UL94V-0 (optional) |
| Working Temp (Static) | -40°C to 100°C (peak 120°C) |
| Working Temp (Dynamic) | -20°C to 80°C (peak 100°C) |
| Thread Type | Female Thread (internal) |
| Thread Standard | Metric / G (PF) |
| Color | Black / Grey; custom colors on request |

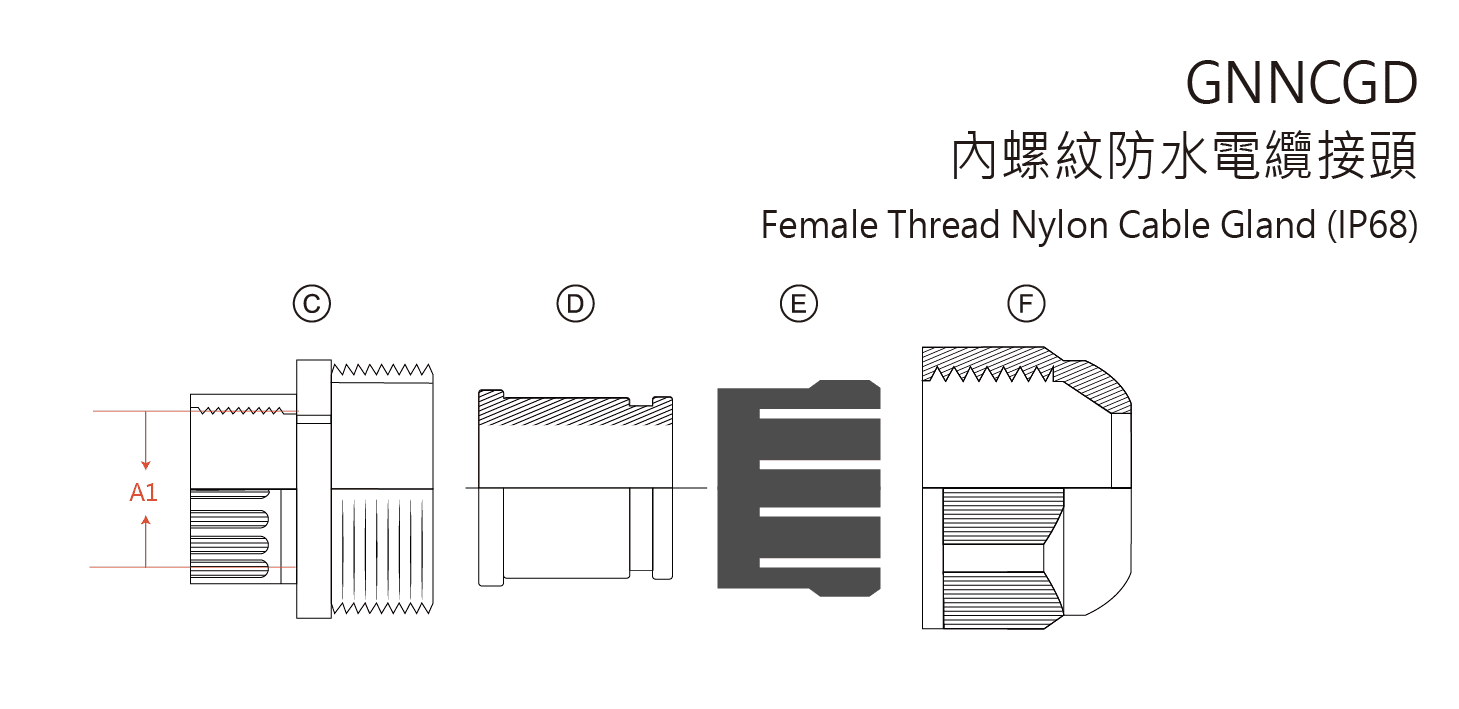

Engineering Drawing
Application Scenarios
Automation Equipment & Machine Housings
Thread directly onto male-threaded machine ports. No adapter needed — cleaner mechanical design and faster assembly on the production floor.
Control Panels & Electrical Systems
IP68 sealing protects cable entry points in factory control cabinets and distribution boards where long-term moisture protection is critical.
Outdoor & Chemical Environments
Customizable EPDM seals handle acid/alkali exposure, making the GNNCGD suitable for outdoor power systems, chemical plants, and semiconductor fab equipment.
FAQ
Q1｜How does a female-thread cable gland differ from a standard one? When should I choose it?
A standard cable gland has external (male) threads and screws into the internal thread of an enclosure knock-out. The GNNCGD reverses this — it has internal (female) threads and threads directly onto a male-threaded port on the equipment itself, such as a machine housing, pipe fitting, or connector body. This eliminates the need for a separate adapter, simplifying the design and reducing assembly steps.
Q2｜What does IP68 mean? How deep can GNNCGD handle?
IP68 is defined by IEC 60529 as the highest general-purpose rating for dust and water ingress protection. It denotes complete dust-tightness and the ability to withstand continuous immersion in water — typically at 1 meter depth for 30 minutes or more, as specified by the manufacturer. For the GNNCGD, IP68 ensures reliable cable sealing in rain, splashes, and short-term immersion scenarios.
Q3｜The standard rating is UL94V-2 — can it be upgraded to V-0? What is the difference?
Yes. UL94V-2 is the standard flame-retardant self-extinguishing grade. UL94V-0 extinguishes faster and produces no flaming drips, making it the preferred choice for equipment with open flame risk, high safety-class power devices, medical instruments, and aerospace applications. Confirm your equipment's fire safety requirements before ordering.
Q4｜What customizable EPDM seal formulas are available?
Standard EPDM already provides excellent weathering and ozone resistance. Customizable formulas include:
・Cold-resistant: for cold storage and low-temperature outdoor climates
・High-temperature: for furnace surrounds and engine compartments
・Acid/alkali & chemical-resistant: for chemical plants and semiconductor wet-process equipment
・Anti-corrosion: for marine and salt-spray environments
Contact our sales team with your application conditions to confirm the most suitable formula.
Q5｜What thread standards does the GNNCGD support? How do I confirm compatibility?
The GNNCGD is available in Metric (M-series) and G/PF threads. Before ordering, identify the thread type and size on your equipment's male port (e.g., M20, G1/2). Then verify that the cable outer diameter (OD) falls within the gland's clamping range using the engineering drawing. Contact our sales team if thread identification is uncertain.
