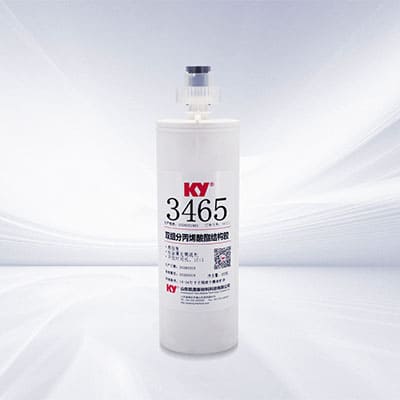

3465 Two-Part Acrylic Adhesive

3465

Overview

3465 Two-Part Acrylic Adhesive

is an ideal bonding solution for the automotive manufacturing and rail transit industries. With a 10:1 volume mixing ratio and room-temperature curing, it offers low shrinkage and low odor, and requires no primer for bonding metals. Suitable for structural bonding of metals, engineering plastics, and composites, the 3465 provides high strength and stable adhesion, meeting industrial users' strict requirements for safety and durability.

Features

  • Color (Pre-Mix Component A): Off-white
  • Viscosity (Pre-Mix Component A): 100,000 ~ 130,000 MPa·s
  • Color (Pre-Mix Component B): Gray
  • Viscosity (Pre-Mix Component B): 20,000 ~ 60,000 MPa·s
  • Gap Filling Capability: ≤9 mm
  • Fixture Time: 45 mm
  • Open Time: 12 mm
  • Post-Cure Shear Strength: 20 MPa
  • Post-Cure Operating Temperature: -50 ~ 120°C

Product Overview

Product Model Component A Colour (Before Mixing) Component A Viscosity (Before Mixing) (MPa·s) Component B Colour (Before Mixing) Component B Viscosity (Before Mixing) (MPa·s) Gap-Filling Capacity (mm) Fixture Time (min) Open Time (min) Shear Strength After Curing (MPa) Operating Temperature After Curing (°C)
3431G Off-white 5000 Blue 30000 ≤9 8 4 20 -40~120
3461 Greyish white to reddish brown 10000~130000 Grey 20000~60000 ≤9 18 5 18 -50~120
3462 Greyish white 10000~130000 Grey 20000~60000 ≤9 45 12 20 -50~120
3465 Greyish white 11000~150000 Black/Blue 20000~50000 ≤9 18 10 18 -50~120
