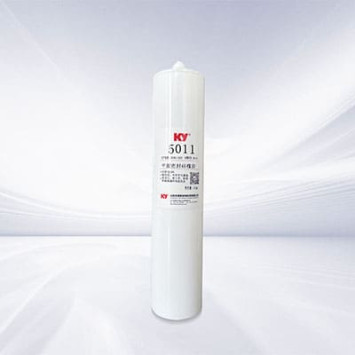

5011 Silicone Gasketing Sealant

5011

Overview

5011 Silicone Gasketing Sealant

 is a single-component, oxime-cure translucent silicone utilizing UV-curable CIPG (Cured-in-Place Gasket) technology. Non-corrosive to machinery components, it offers excellent aging resistance, weatherability, thermal cycling, and media resistance. Ideal for structural sealing and waterproofing, it is widely used in automotive electronics, security equipment, household appliances, and industrial manufacturing. With rapid curing and reliable sealing, it provides flexible application solutions.

Features

  • Color: Translucent
  • Viscosity: 45,000 ~ 55,000 mPa·s
  • Density: 1.05 g/cm³
  • Curing Method: UV
  • Hardness: 25 ~ 35 Shore 00
  • Tensile Strength: 4 MPa
  • Elongation at Break: ≥400%

Silicone Gasketing Sealant Overview

Product Model Color Viscosity
mPa·s		 Density
g/cm³		 Curing Method Hardness
Shore		 Tensile Strength
MPa		 Elongation at Break
%
5011 Translucent 45000–55000 1.05 UV Cure 25–35 (Shore 00) 4 ≥400
5019 Gray 30000–40000 1.1 Heat Cure 43A 5.5 ≥200
