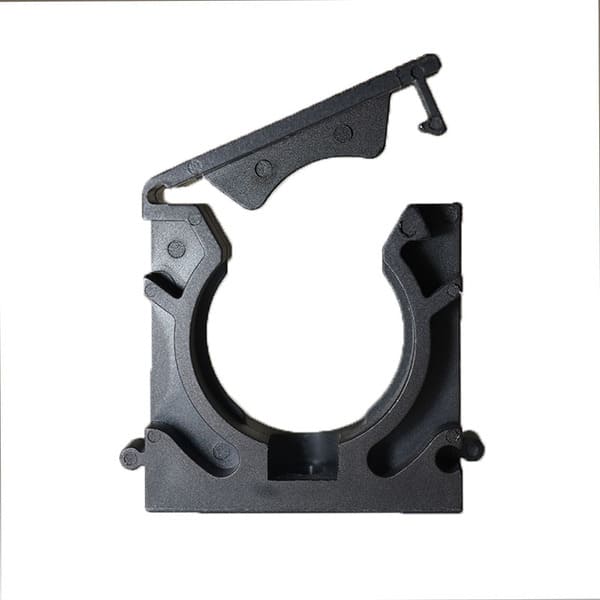

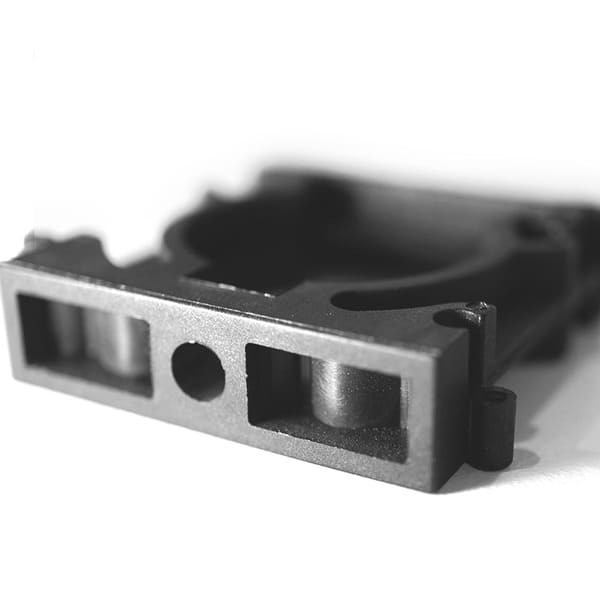

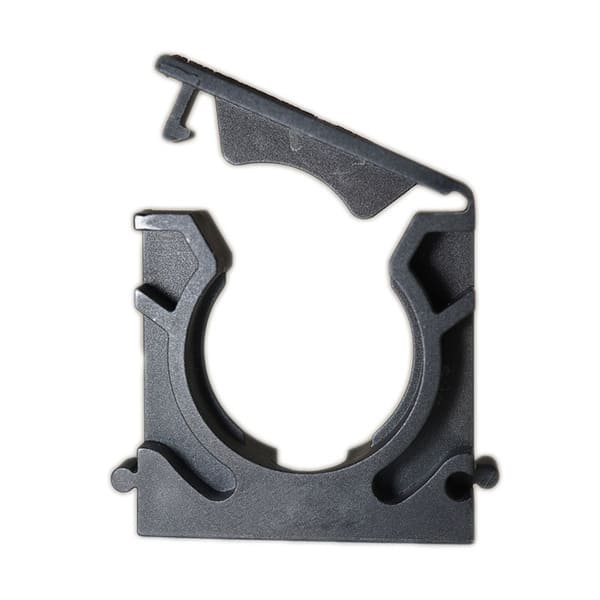

Nylon Corrugated Tubing Mounting Clamp / Holder
GQNE-ZJ
Product Overview
Nylon Corrugated Tubing Mounting Clamp / Holder
The quality of cable management is often the first impression an engineer forms of a completed installation. The GQNE-ZJ integrates covered and open-top mounting clamp types into a single product, meeting different routing needs without carrying separate SKUs. Corrugated tubes snap into uniform, evenly-spaced rows — the result is a clean, professional look that reflects well on the equipment build quality.
Made from industrial-grade nylon rated for -40°C to 110°C, it is suitable for the full range of automation equipment, control panels, and industrial machinery environments. Screw-mount installation onto equipment panels or cable management rails.
Key Features
- Covered and open-top types integrated: One product covers two installation needs — reduces stocking complexity
- Organized, uniform cable routing: Consistent mounting points keep corrugated tubes running in parallel for a professional finish
- -40°C to 110°C operating range: From refrigeration machinery to general high-temperature industrial environments
| Specification | Details |
|---|---|
| Material | Industrial-grade Nylon |
| Design Type | Covered (with lid) / Open-top — integrated design |
| Working Temperature | -40°C to 110°C |
| Color | Black (standard); custom colors on request |
| Installation | Screw-mount to equipment panels or cable management rail |

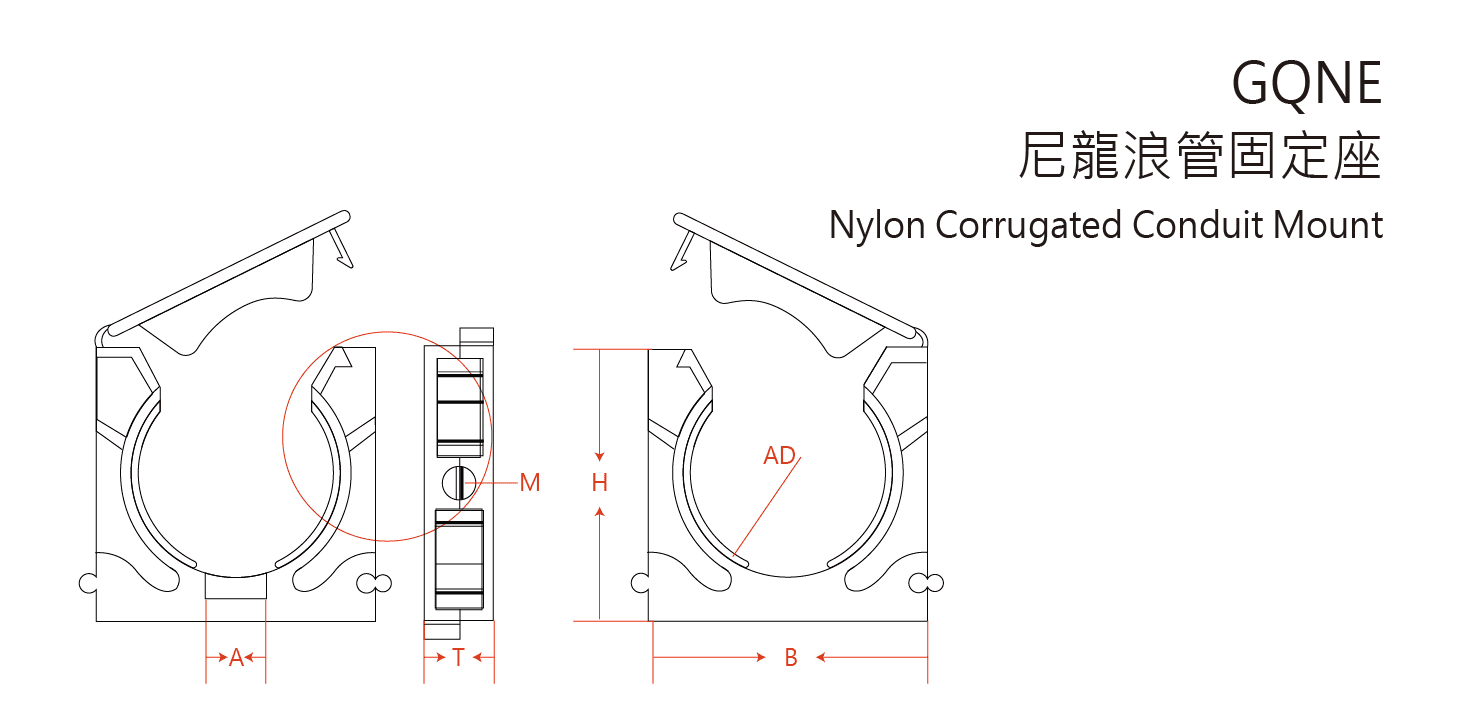

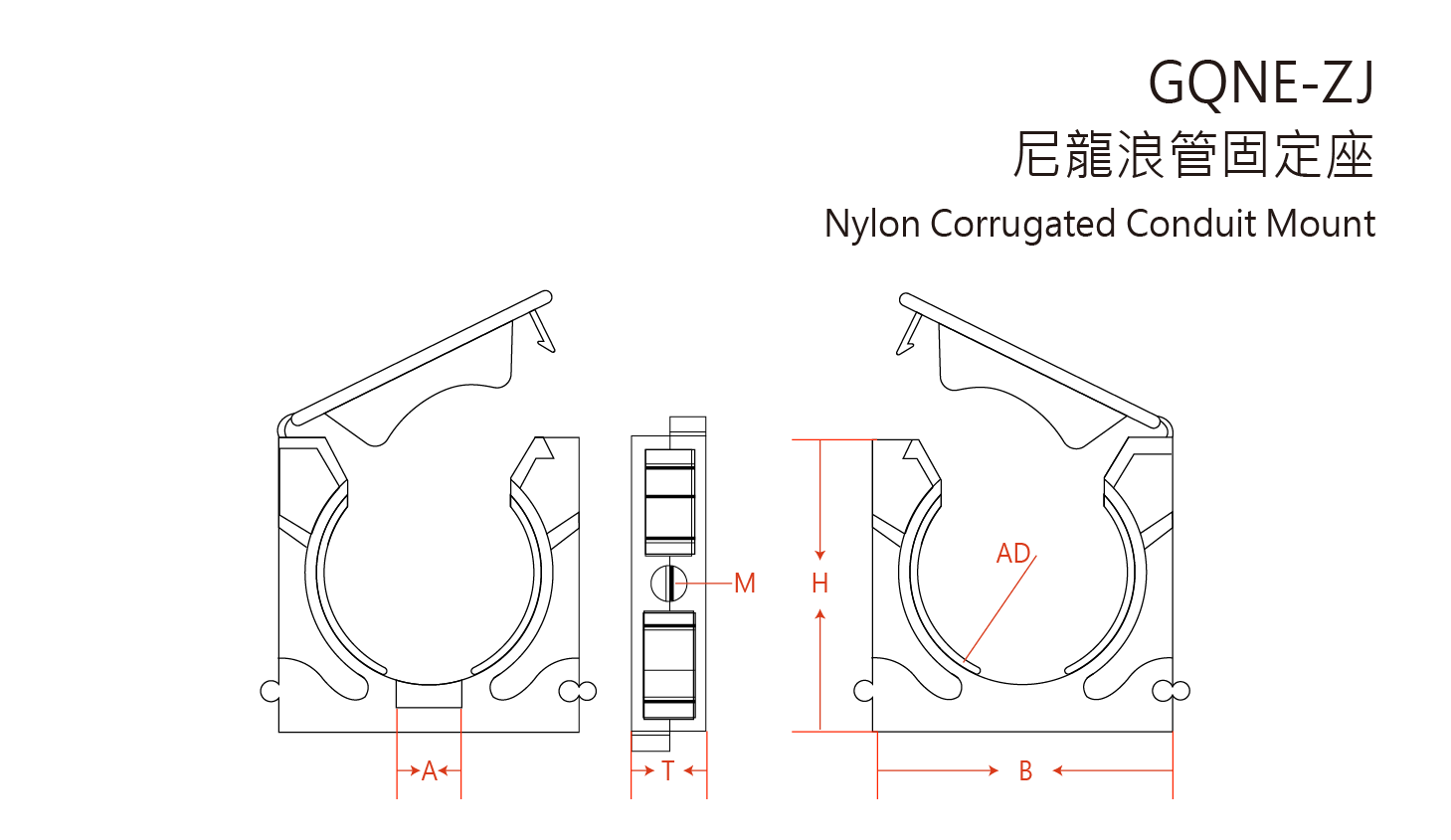

Engineering Drawing
Application Scenarios
Control Panels & Electrical Cabinets
Multiple corrugated tubes mounted in uniform rows eliminates the tangled, unorganized look inside control cabinets — bringing the internal wiring up to factory-standard neatness.
Automation Equipment & Machine Housings
The covered type fully encloses the corrugated tube after mounting — ideal for machinery where dust protection or precise tube positioning is required inside the equipment housing.
Industrial Machinery & Factory Equipment
Rated to 110°C for use alongside motor-driven machinery and high-temperature industrial equipment where long-term stable tube retention is essential.
FAQ
Q1｜What is the difference between covered and open-top types? How do I choose?
The open-top type allows the corrugated tube to snap in from above — fast to install and suitable for general wiring where dust enclosure is not required. The covered type adds a lid after mounting to fully enclose the tube — appropriate for machinery where dust protection is needed or where tube positioning must be maintained precisely. The GQNE-ZJ integrates both designs; select based on your application requirement.
Q2｜How is the GQNE-ZJ mounted to equipment? Does it require special tools?
The clamp is screw-mounted to an equipment panel, DIN rail, or machine housing using a standard screwdriver — no special tools required. Before installation, confirm that the equipment panel's screw hole pattern matches the mounting holes on the clamp. Refer to the engineering drawing for hole dimensions, or contact our sales team for details.
Q3｜Can the nylon material handle high-temperature environments? What is the operating range?
The GQNE-ZJ is rated for -40°C to 110°C, covering the normal operating temperature range of most industrial equipment. If your application environment exceeds 110°C, contact our sales team to evaluate whether an alternative material specification is required.
Q4｜How many corrugated tubes can one clamp hold? Which tube sizes are compatible?
The GQNE-ZJ is designed to hold one corrugated tube per clamp unit. Compatible tube sizes are determined by the clamp channel diameter — confirm that your corrugated tube outer diameter (OD) matches the clamp channel size before ordering. Refer to the engineering drawing for size specifications, or contact our sales team with your tube model for a size match confirmation.
Q5｜Can the clamp be ordered in colors other than black?
Standard color is black. Custom colors (such as grey) can be ordered to meet specific project requirements. Custom color orders typically require a minimum order quantity (MOQ). Contact our sales team to discuss your requirements and obtain a quotation.
