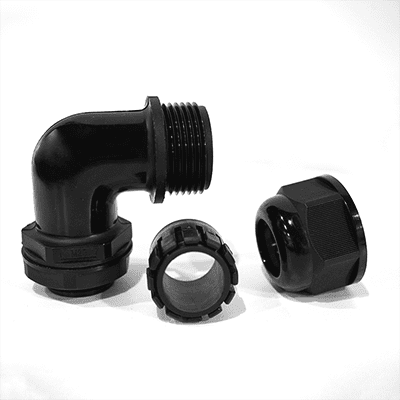

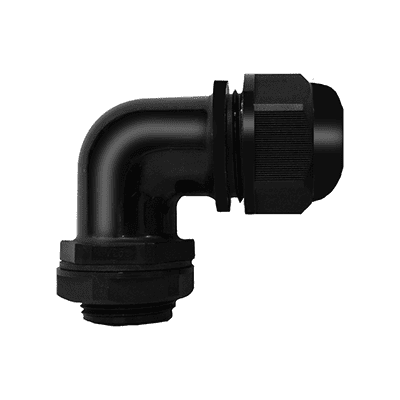

90° Nylon Waterproof Strain Relief Cable Gland

 is made from UL-certified flame-retardant nylon and high-performance sealing rubber. It offers exceptional chemical resistance, wide temperature tolerance, and reliable waterproof and dustproof protection with an IP68 rating. Its clamping claws and ring design provide a broad gripping range and strong pull-out resistance, keeping cables securely in place. The 90° angled design is ideal for corner installations. Perfect for automation equipment, electrical control panels, and demanding industrial environments.

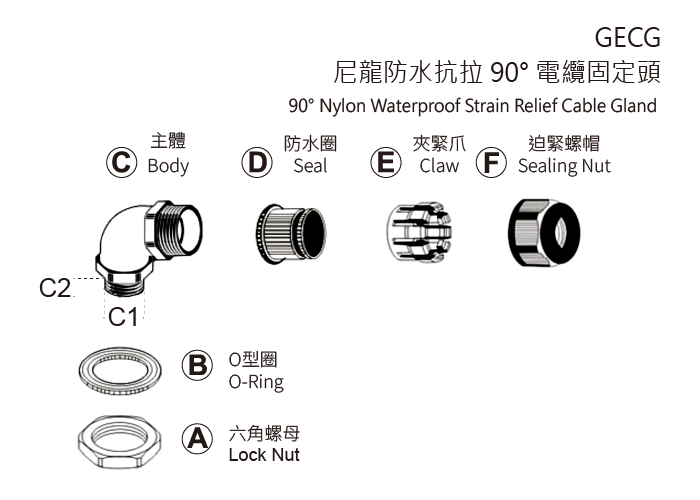

• Material: Parts A.C.E.F are made from UL-certified PA66 nylon (fire rating UL94 V-2, optional V-0); parts B.D use EPDM weather-resistant rubber (customizable for cold, high temperature, acid/alkali, chemical resistance, and corrosion protection).r
• Temperature range: -40℃～100℃, can heat up to 120℃ instantly.
• Waterproof rating: IP68
• Color: Black and Gray. Other colors are also acceptable.
• Thread Spec.: Metric, PG, G (PF / BSP / PS), NPT
