Nanocrystalline Ribbons
NAB
Overview
Nanocrystalline Ribbons
are advanced soft magnetic materials engineered for power electronics, wireless charging, and industrial automation. They deliver high magnetic induction, low eddy current loss, and excellent high-frequency performance.
With a thin, flexible structure and easy processability, nanocrystalline ribbons support laminated and multi-layer designs, enabling compact, high-efficiency component optimization for modern electronic systems.
Features
- Color: Silver
- Magnetic Permeability: 10000 (ASTM D5568 @100kHz)

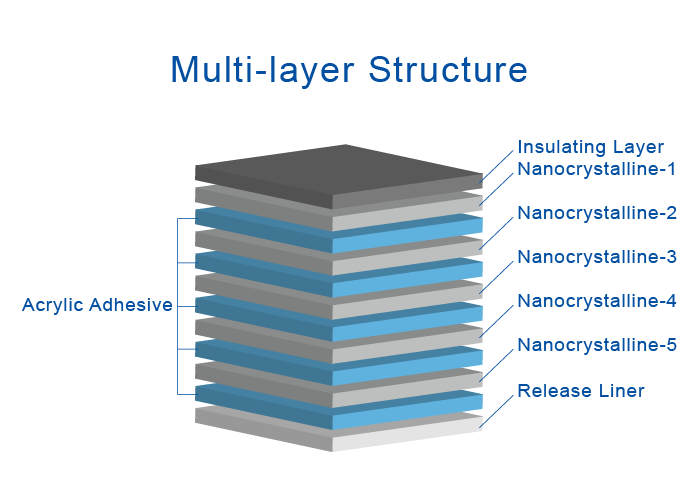

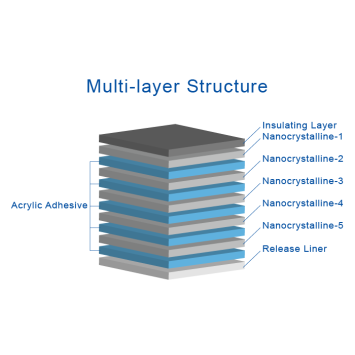

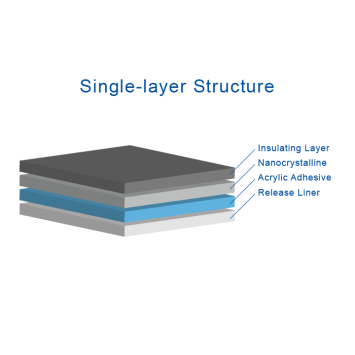

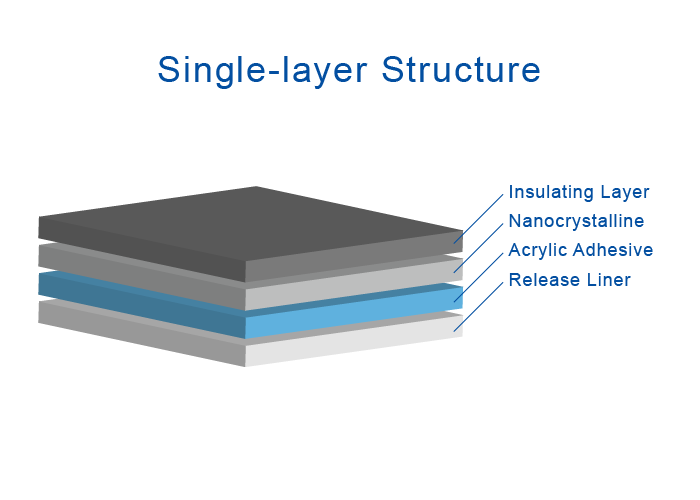

- Thickness and Type: Single layer: 35 ± 10 μm (ASTM D374); 5-layer stack: 155 ± 15 μm (ASTM D374)
- Resistance: ≥130 μΩ·cm (ASTM C611)
- Magnetic Flux Density: 1.3 T (ASTM A894)
- Curie Temperature: 550 ~ 570 ℃ (ASTM C611)
- Temperature: -40 ~ 110 ℃
Engineering Picture

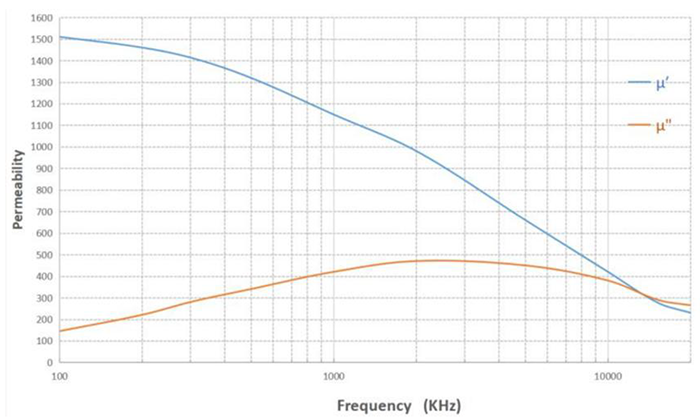

Permeability
