LL-100 Automatic Tube Cutting Machine (Tabletop/Floor Model Hot/Cool Cut)

LL-100

Product Introduction

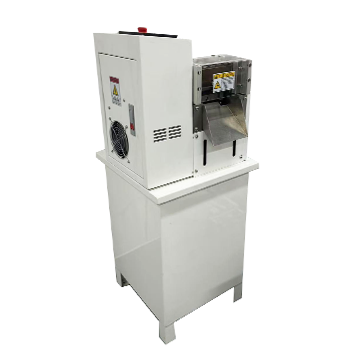

LL-100 Automatic Tube Cutting Machine

is available in three versions: tabletop hot cut, floor model hot cut, and floor model cool cut. It features a fully digital intelligent control system with intuitive button operation. Users can easily set cutting length, quantity, and feeding speed, ensuring precise cutting results with minimal waste. This machine is widely used in the electronics materials industry, including applications for shielding materials, adhesive materials, insulating materials, and conductive materials. It is also suitable for tube processing, harness manufacturing, automotive and motorcycle parts, as well as rubber and plastic processing. Additionally, it can be utilized in various fields such as webbing, zippers, appliances, and motors.

Feature

Voltage: AC 215V—235V, 50HZ
Cutting Width: 1~100mm
Cutting Length: 0.2~999999mm
Feeding Motor Precision: 0.03mm
Dimensions: 400mm (L) × 420mm (H) × 380mm (W)

LL-100 full series specification sheet

Item	Desktop Hot Cut	Floor Hot Cut	Floor Cool Cut
Packing Size	400mm×H420mm×W380mm	400mm×H420mm×W380mm	400mm×H420mm×W380mm
Display Method	Touch Screen	DsP Program Mainboard	DsP Program Mainboard
Display	LCD Display	192X64 Blue Screen LCD Display	192X64 Blue Screen LCD Display
Voltage	AC215V—235V≦50HZ	AC215V—235V≦50HZ	AC215V—235V≦50HZ
Power	100W	100W	100W + Hot Cutting Device Max Power 550W Adjustable
Operating Mode	Chinese-English Switching Setting	Chinese-English Switching Setting	Chinese-English Switching Setting
Feed Motor Accuracy	0.03mm per step	0.03mm per step	0.03mm per step
Total Quantity	999999	999999	999999
Tool Material	DC53 Longchi Steel	Die Steel D2, High-Speed Steel (Specific)	Die Steel D2, High-Speed Steel (Specific)
Batch Size	99999	99999	99999
Roller Pressure Adjustment	Yes	Yes	Yes
Speed	00—99	00—99	00—99
Pulse Equivalent	Adjustable	Adjustable	Adjustable
Cutting Length	0.2—999999mm	0.2—999999mm	0.2—999999mm
Cutting Gross Weight	45Kgs. 55Kgs	45Kgs. 55Kgs	50Kgs, 60Kgs
Cutting Width	1—100mm	1—100mm	1—100mm

LL-100 Automatic Tube Cutting Machine - Video

Stable Tube Feeding System: Equipped with an inductive automatic feeding system and stable tension technology, combined with photoelectric sensors, stepper motor feeding, and electronic auto-stop functionality, it ensures precise cutting with minimal tolerance. Watch the video below to see how our stable feeding system enhances cutting accuracy! Interested in learning more? Feel free to contact us to explore efficient production solutions together!

LL-100 Automatic Tube Cutting Machine

Control Interface Highly intuitive button control panel, allowing users to freely set cutting length, quantity, and feeding speed.
	Feeding Module Operates smoothly, preventing movement during cutting.
Cutting Module Precision cutting enhances durability.
	Cutter Produces neat cuts quickly.
