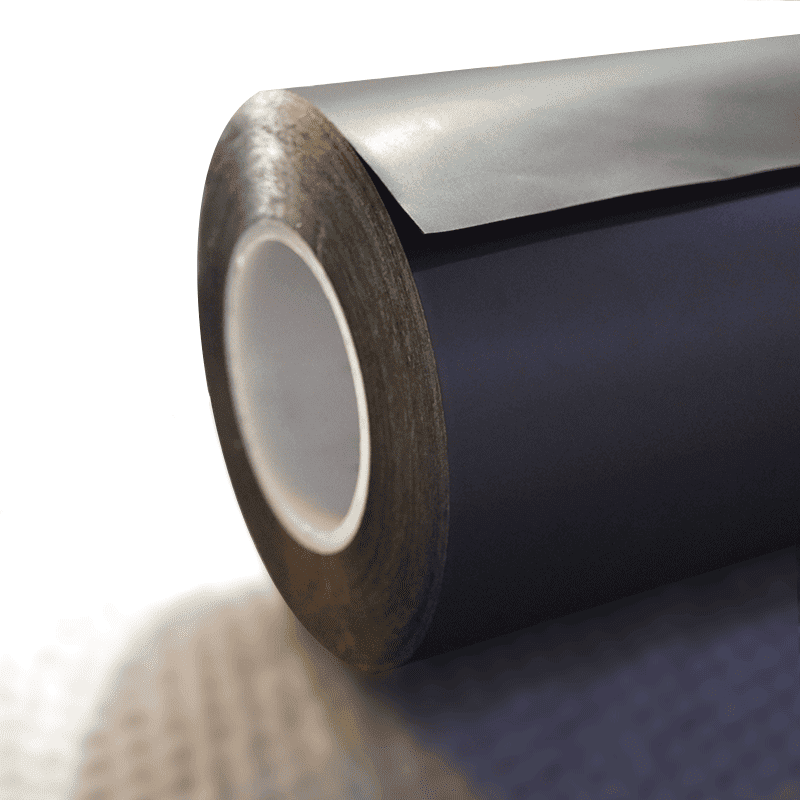

EMI Aluminum Foil Shielding Tape
GASTD
Overview
EMI Aluminum Foil Shielding Tape
delivers high shielding effectiveness, light-blocking capabilities, and durable insulation for efficient electromagnetic interference (EMI) control in space-constrained environments.

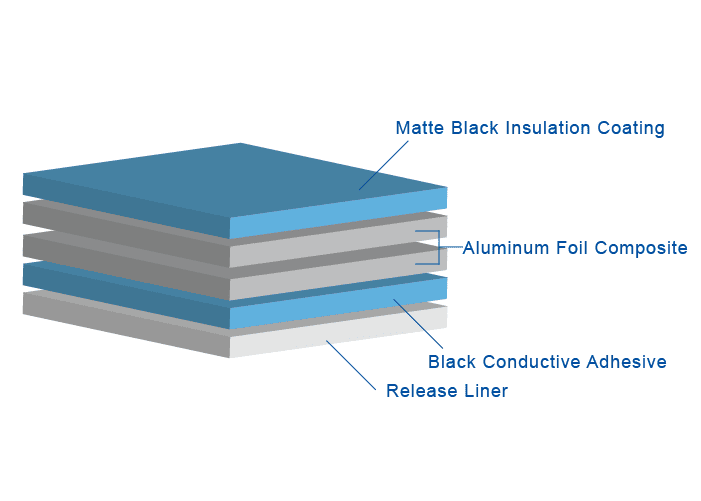

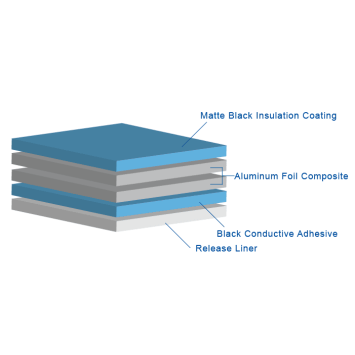

Constructed with a conductive aluminum foil layer and strong adhesive, this tape ensures stable conductivity, excellent abrasion and weather resistance, and dependable ESD protection.
It is ideal for use in displays, FPCs, PCBs, and automotive electronics, and supports die-cutting as well as curved surface mounting for flexible application in modern electronic assemblies.
Features
- Thickness: 0.06 ± 0.01 mm
- Surface Resistance: ≦0.1 Ω/inch² (adhesive side)
- Shielding Effectiveness: >70 dB (30 MHz–6 GHz)
- Peel Adhesion: ≧1600 gf/25 mm
- Operating Temperature Range: -40 ~ 100 ℃"
