LL-150 Corrugated Tubing Digital Cutting Machine

LL-150

Product Introduction

LL-150 Corrugated Tubing Digital Cutting Machine

Designed specifically for cutting convoluted tubing in the automotive wiring harness industry, this machine integrates high-precision PLC control technology to ensure ease of operation for anyone. Whether dealing with round plastic hoses or convoluted tubing, this machine handles them effortlessly, delivering exceptional processing efficiency and reliable performance.

Feature

Cutting Length: 0.1-9999.99 mm
Cutting Width: 1-40mm
Cutting Precision: ±0.1 mm
Cutting Speed: 60-110 cuts/minute
Power: 500 Wv
Dimensions: 560 mm (L) * 440 mm (W) * 400 mm (H)

LL-150 Corrugated Tubing Digital Cutting Machine Specification Table

Item	Content
Power Supply	220V 50/60HZ
Dimensions	560mm (L) * 440mm (W) * 400mm (H)
Cutting Length	0.1-9999.99mm
Cutting Width	1-40mm
Cutting Accuracy	±0.1mm
Cutting Speed	60-110 cuts/min
Speed	L=100mm, 100pcs/min
Weight	72kg
Power	500W
Rated Frequency	50HZ
Rated Current	7A-15A

LL-150 Corrugated Tubing Digital Cutting Machine - Video

LL-150 Corrugated Tubing Digital Cutting Machine Details

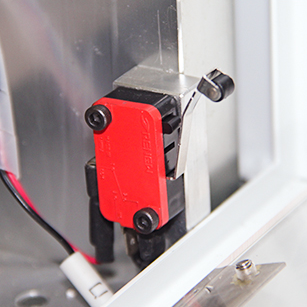

Safety Switch with Protective Cover Prevents accidents and ensures the safety of operators.
	Stepper Motor for Precise Feeding Provides high-precision feeding control to ensure cutting length, position, and surface are accurate and stable.
Power Socket Fuse Prevents overloads and short circuits, safeguarding both the machine and the user.
	Motor Heat Sink Prevents motor overheating to extend motor life and improve cutting efficiency while maintaining stable operation.
Cutting Module ...
	Stable Power Switch Withstands frequent switching and provides stable power supply.
High-Efficiency Brushless Motor Offers higher conversion efficiency, improves overall performance, reduces maintenance costs, and extends equipment lifespan.
