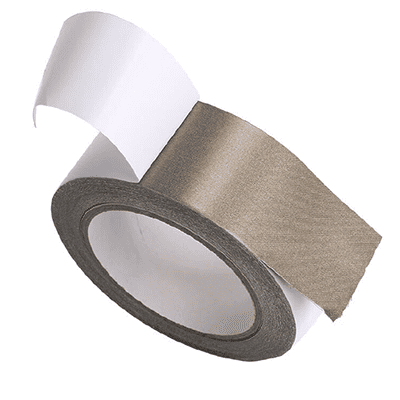

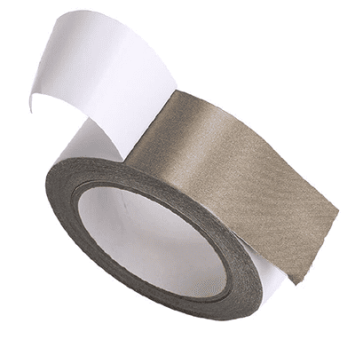

Conductive Fabric Double-sided Tape
GCFD
產品簡介
Conductive Fabric Double-Sided Tape
combines high-conductivity fabric with double-sided conductive acrylic adhesive to deliver stable electrical conduction, effective EMI shielding, and reliable ESD protection.
Ideal for precision electronics, communication equipment, and industrial automation, it performs across both high- and low-frequency environments.
With strong adhesion and flexible handling, it’s perfect for grounding, EMI suppression, and metal-to-metal bonding in advanced assemblies.
產品特色
- Thickness Range: 0.03–0.12 mm
- Surface Resistance: ≦0.08–0.1 Ω/inch²
- Z-Axis Resistance: ≦0.08–0.1 Ω/inch²
- Shielding Effectiveness: ≧60–70 dB (30 MHz–6 GHz)
- Peel Adhesion: ≧800–1400 g/25 mm
