Silicon Rubber Tubing


Product Introduction

Silicon Rubber Tubing

 is made of organic silicon, which is with high insulation, high tensile strength, heat and cold resistance, humidity resistance, softness, flexibility, and chemical resistance.


  • Material: Silicone rubber
  • Operating temperature: -60℃~200℃
  • Rated voltage: 600V
  • Flame retardant grade: VW-1
  • Breakdown voltage: 20kV/mm
  • Color: Clear and white. Other colors are also acceptable.
  • UL NO.E479000

More Information

  1. What is Silicon Rubber Tubing and what are its uses?

    Silicon Rubber Tubing is a flexible and durable protective cover that is used to safeguard wires and cables from damage, abrasion, and temperature fluctuations. It is widely used in various industries, including automotive, marine, and manufacturing, to ensure the safety and reliability of electrical wiring.

  2. What are the characteristics and advantages of Silicon Rubber Tubing?

    • High-temperature resistance

      Silicon Rubber Tubing can withstand high temperatures of up to 200℃ for extended periods without cracking or degrading.

    • Excellent insulation

      It is an excellent insulating material that can protect wires and cables from electrical hazards with its dielectric strength of up to 600V.

    • Wear-resistant

      Silicon Rubber Tubing is smooth and wear-resistant, ensuring longevity and durability.

    • Good flexibility

      It has excellent elasticity and can be used in complicated and confined spaces without deforming or losing shape.

    • Environmentally friendly

      Silicon Rubber Tubing is an eco-friendly material that complies with the EU RoHs directive.

  3. How to choose the right Silicon Rubber Tubing?

    Consider the following factors:

    • Application

      Choose the right type of Silicon Rubber Tubing based on its characteristics and application requirements.

    • Durability

      Select a durable Silicon Rubber Tubing that can withstand prolonged or frequent use.

    • Size

      Choose the appropriate inner diameter of the tubing based on the dimensions of the object to be covered, taking into account factors such as material friction and insertion efficiency.

Certificate from the Third Party

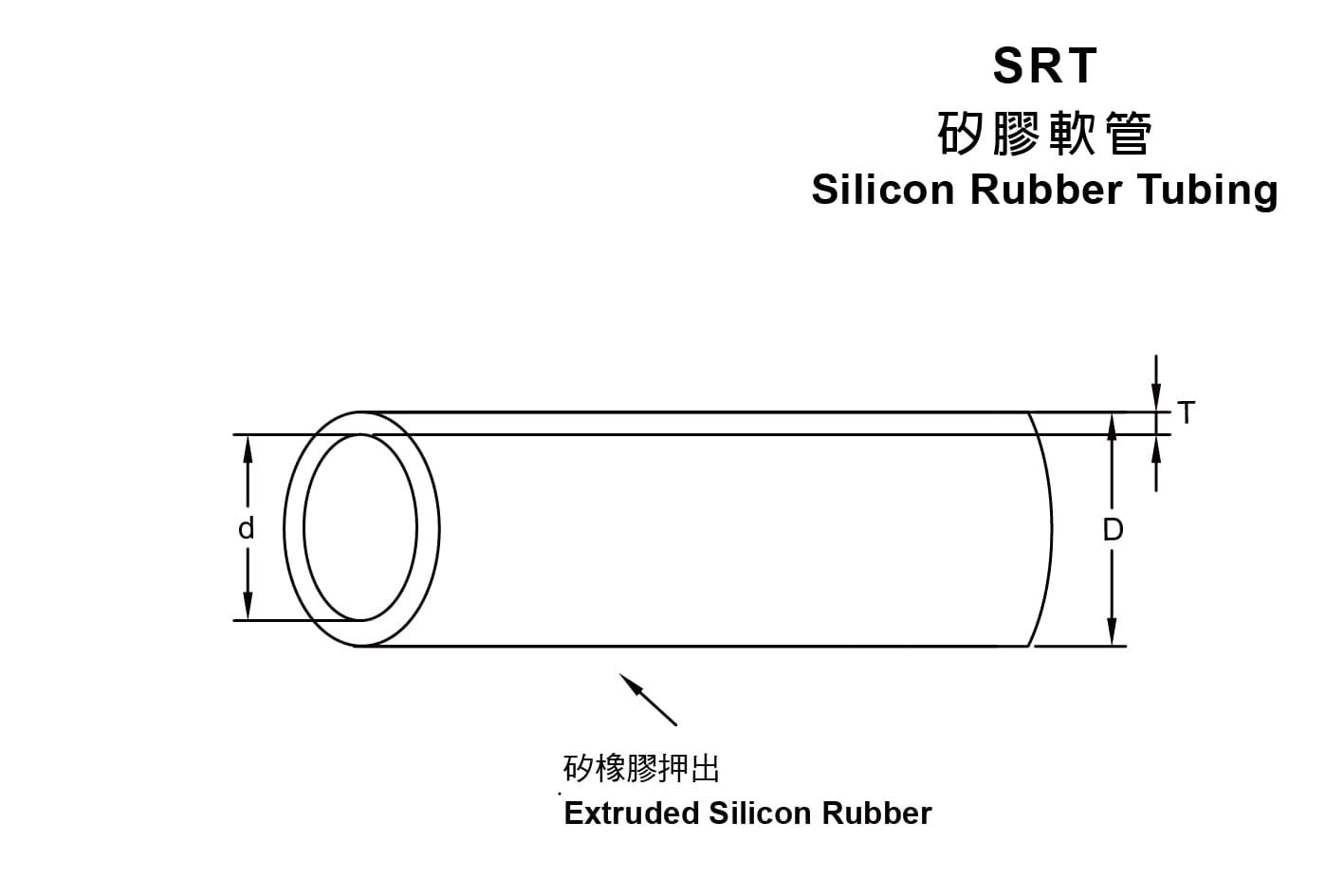

Engineering Picture
