PTFE Extruded Tubing (S-type)
GND-SS
Overview

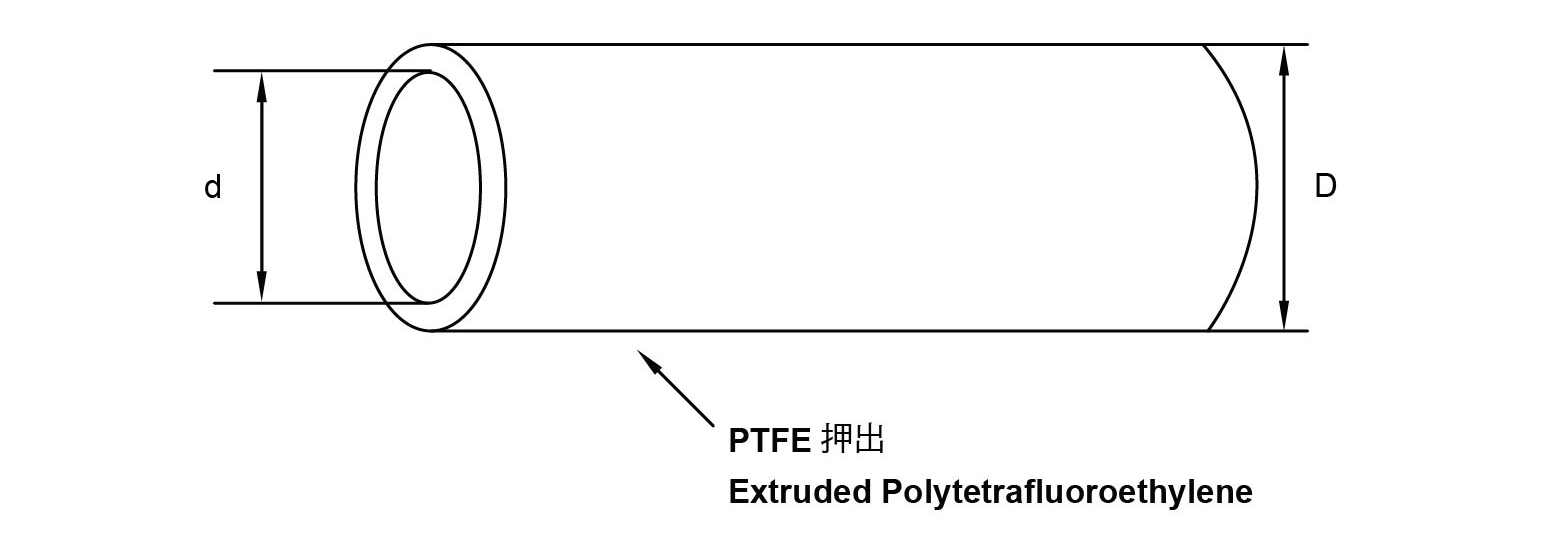

PTFE Extruded Teflon Tubing
has a smooth surface, low friction and high-temperature resistance, corrosion resistance, insulation resistance, wear resistance, and good mechanical properties.
Comply with UL & CSA specifications, RoHS, and REACH.
PTFE tubing is widely used in automobile wiring harnesses, machine tool machinery, power equipment, food machinery, automation instruments, and electric motors. It also protects cables and wires from external force abrasion and insulation.
Features
- Material： PTFE Polytetrafluoroethylene
- Operating temperature：-80℃~260℃
- Rated voltage：600V
- Flame retardant grade： VW-1
- Breakdown voltage：30kV/mm
- Color： Clear and Black. Customized colors are acceptable.
- UL NO.E479000
